| ART.EH1391 |
|
| Technical features: |
|
According to EN331 standard.
Minimum and maximum working temperature:
－10oC, 120oC.
Available: 15mm, 22mm, 28mm,35mm, 42mm, 54mm
|
Materials:
|
|
Valve Body: CW617N
Handle: Steel
Ball: Hard chrome-plated brass
Seal: P.T.F.E.
Stem: Brass
O-Ring: NBR or FKM
|
|

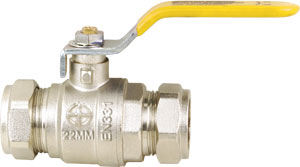

Forged brass compression,
gas ball valve; yellow
lever handle; full bore
BS EN331,
PN16(5MOP)
Size:15mm, 22mm, 28mm,
35mm, 42mm, 54mm
|
 |
|
Size(mm)
|
15mm |
22mm |
28mm |
35mm |
42mm |
54mm |
| A |
71 |
79.5 |
87.5 |
107 |
125 |
150 |
| B |
15.15 |
22.2 |
28.3 |
35.3 |
42.4 |
54.4 |
| D |
90.5 |
90.5 |
101.5 |
139.2 |
176 |
176 |
| E |
50 |
53.5 |
66 |
75.3 |
81 |
91 |
|
|
