ART.EH1080



ART.EH1080


Technical features:

According to EN331 standard.
Minimum and maximum working temperature:
-10oC, 120oC.
Available: in all sizes from 1/4" up to 2".

Materials:

Valve Body: CW617N
Handle: Steel
Ball: Hard chrome-plated brass
Seal: P.T.F.E.
Stem: Brass
Stem-seal: Brass
O-Ring: NBR or FKM

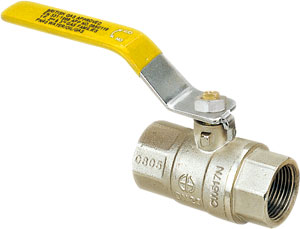

Forged brass gas ball valve;
yellow steel lever handle;
FxF
ISO7/1 thread,
EN331 standard
PN40~PN25(5MOP)

Size:1/4"~2"











Size(mm)

1/4" 3/8" 1/2" 3/4" 1" 11/4" 11/2" 2"
A 41.8 45 53 61 73 84 98 118
B 8 10 15 20 25 32 40 50
C 21.5 25 32 38.5 47 55.5 68 86
D 65.5 65.5 96 96 120 114.5 176 176
E 41 42 47.5 50 58.5 68 81 91
