ART.EH1264

Technical features:

Straight valve for thermostatic M30x1.5
Use: hot water
Maximum working pressure: 10bar
Maximum working temperature:110℃
Temperature:6℃~28℃
Pipe Thread to ISO7/1

Materials:


Valve Body: Brass
Head: ABS
Nut: Brass
Seal:EPDM
Stem: SS304
O-Ring: NBR or EPDM

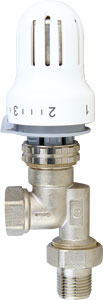

Inversed angle radiator
thermostatic valve,
with head
accord with EN215 standard

Size:1/2"











Size(mm)

1/2"
A 165
B G1/2
C S25.5
D 40
