ART.EH1406

ART.EH1406

Technical features:

Suitable for domestic water services, heating and
air-conditioning plants, compressed air systems.

Minimum and maximum working temperature:
-10oC, 120oC.
Available: 15mm, 22mm

Materials:


Valve Body: Brass
Ball: Hard chrome-plated brass
Seal: NBR
Stem: Brass
Stem-seal: Brass
O-Ring: NBR

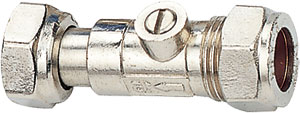

Service brass valve,
nickel-plated

Size: 15mm, 22mm











Size(mm)

15mm 22mm
A 70 80
B 15.15 22.15
C S23.5 S23.15
D 15 18
