| ART.EH1182 |
|
| Technical features: |
|
Valve with lockshield
Use: hot water
Maximum working pressure: 10bar
Maximum working temperature: 110oC
|
Materials:
|
|
Valve Body: Brass
Nut: Brass
Seat: Brass
O-Ring: NBR or EPDM
|
|

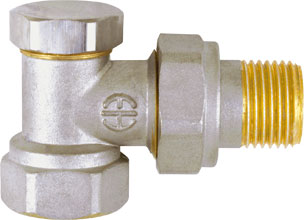

Forged brass angle radiator
valve with lockshield,
nickel plated, heavy model,
ISO7/1 thread
Size: 1/2"
|
 |
|
Size(mm)
|
1/2" |
| A |
47 |
| B |
55 |
| C |
G1/2 |
| D |
11 |
| E |
G1/2 |
|
|
