ART.EH1032
ART.EH1032

Technical features:

Suitable for domestic water services, heating and
air-conditioning plants, compressed air systems.

Minimum and maximum working temperature:
-15oC, 120oC.
Available: in all sizes from 1/2" up to 3/4".

Materials:


Valve Body: Brass
Handle: Steel
Ball: Hard chrome-plated brass
Seal: P.T.F.E.
Stem: Brass
Stem-seal: Brass
O-Ring: P.T.F.E.

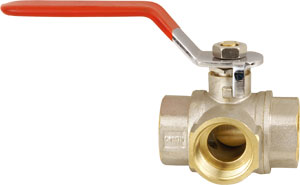

Forged brass full flow ball
valve, 3-way
ISO228 thread
PN40

Size:1/2", 3/4"











Size(mm)

1/2" 3/4"
A 58.35 64.4
B 14.2 20
C 31.2 38.6
D 107.9 107.9
E 55.6 59.6
