ART.EH1010
ART.EH1010

Technical features:

Suitable for domestic water services, heating and
air-conditioning plants, compressed air systems.

Minimum and maximum working temperature: -15oC, 120oC.
Available: in all sizes from 1/2" up to 4".

Materials:


Valve Body: Brass
Handle: Steel
Ball: Hard chrome-plated brass
Seal: P.T.F.E.
Stem: Brass
Stem-seal: Brass
O-Ring: P.T.F.E.

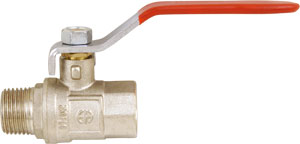

Forged brass ball valve,
red steel flat handle; FxM
ISO228 thread
PN25

Size:1/2"~4"










Size(mm)

1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"
A 53 63 73 84 92 112 144 160 185
B 13.5 17.5 23 30 38 47 62 73 93
D 90 90 105 135 135 150 198 261 261
E 52 55 80 67 73 82 108 116 141.5
