ART.EH1005
ART.EH1005

Technical features:

Suitable for domestic water services, heating and
air-conditioning plants, compressed air systems.

Minimum and maximum working temperature: -15oC, 120oC.
Available: in all sizes from 1/2" up to 1".

Materials:


Valve Body: CW617N
Handle: Aluminium
Ball: Hard chrome-plated brass
Seal: P.T.F.E.
Stem: Brass
Stem-seal: Brass
O-Ring: P.T.F.E.

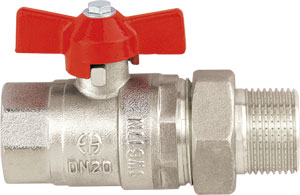

Forged brass ball valve,
red steel butterfly handle;
with connector, FxM
ISO7/1 thread
PN25

Size:1/2"~1"










Size(mm)

1/2" 3/4" 1"
DN 15 20 25
A 75.5 89 97
B 14 19 23
D 52 52 62
E 39 41.5 55
